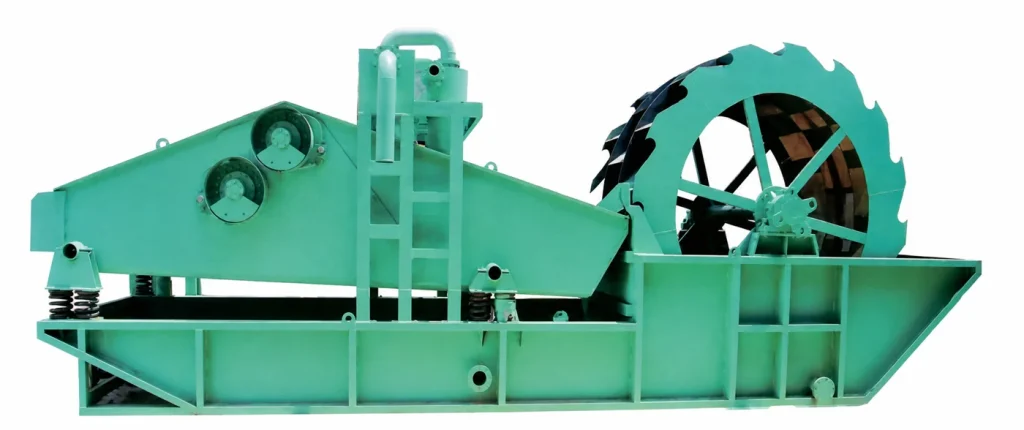

Washing, recovery and dewatering in one unit
Combines washing, fine recovery and dewatering to simplify wet-sand handling. Select against both sand throughput and water flow.
The catalogue separates the sand-capacity and water-flow columns. Keep both in the project brief so the solids duty and the water circuit can be reviewed together.
Applications to discuss
- Wet manufactured sand
- Sand-washing systems
- Fine recovery
Models and reference specifications
| Model | Power (kW) | Feed particle size (mm) | Sand capacity (t/h) | Water flow (m³/h) | Overall dimension (mm) | Weight (t) |
|---|---|---|---|---|---|---|
| SHY1535 | 37 | ≤10 | 40-70 | 60-100 | 7200×2600×3000 | 12.5 |
| SHY1840 | 56 | ≤10 | 80-120 | 80-160 | 8500×2800×3300 | 16.2 |
| SHY2040 | 66 | ≤10 | 150-180 | 180-200 | 8500×3200×3400 | 19.8 |
| SHY2445 | 111 | ≤10 | 200-250 | 200-250 | 8500×3200×3300 | 26.5 |
The source footnote identifies "Selected granularity" as feed particle size; the catalogue values are unchanged. Sand capacity is stated in t/h and water flow in m³/h. These reference values depend on feed properties and concentration. Water flow is not fresh-water consumption. The catalogue excludes pumps, pipework and auxiliary items; confirm the final quotation scope.
Inputs for the wet-sand circuit
| Selection input | What to provide |
|---|---|
| Sand feed | Feed grading, target solids throughput in t/h, moisture and clay content. |
| Water circuit | Expected operating water flow in m³/h and the available water or recirculation arrangement. |
| Recovered product | Required grading and the downstream handling requirement. |
| Plant connections | Incoming slurry or sand-water feed, product discharge and overflow connections. |
| Project scope | New washing line, a replacement unit or an upgrade to the existing wash circuit. |
Define the supply scope
Define the combined unit and the supporting equipment to include. Identify the upstream screening or washing process and the downstream water, fines and product-handling arrangements that need to connect to it.
Send the material and operating requirements for this equipment.
